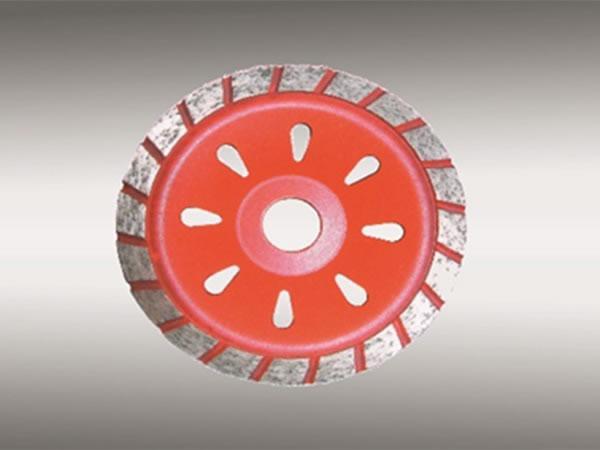

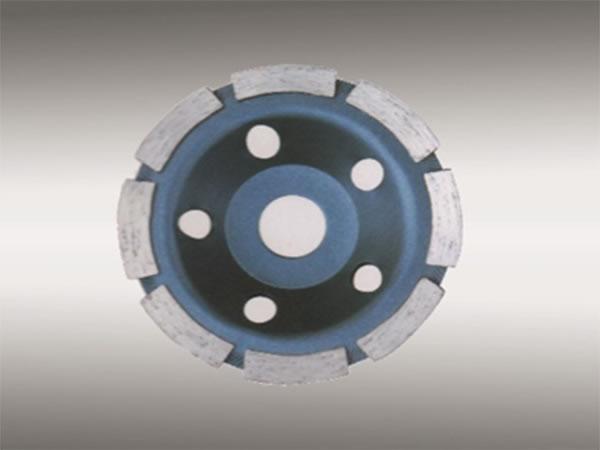

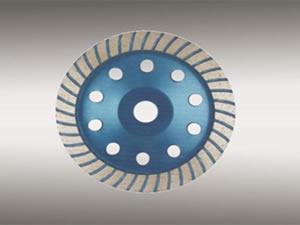

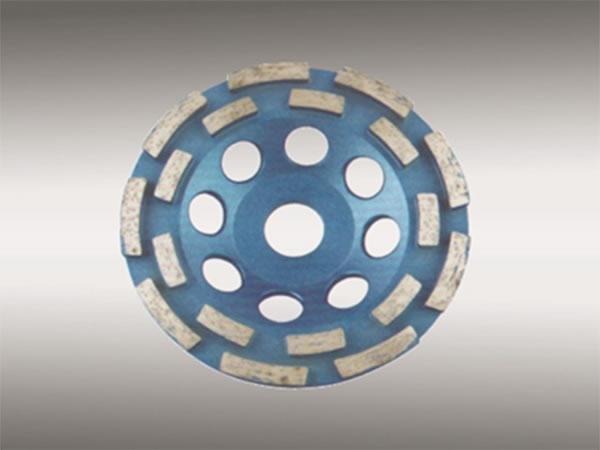

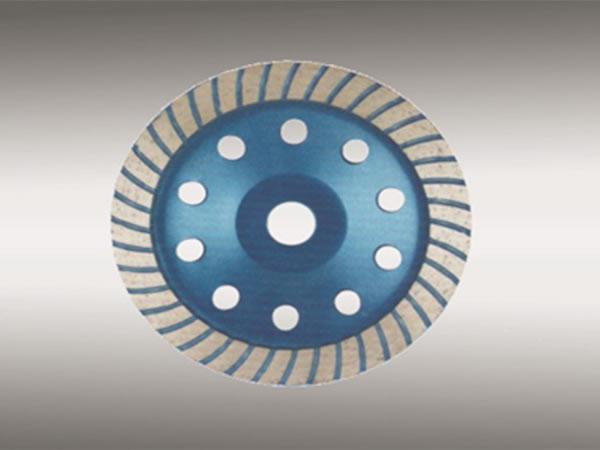

Cold Pressed Sintered Cup Wheels
Joysun cold pressed sintered cup wheels are carefully engineered for high performance grinding for various masonry products. Working with these materials demands extra durability and that is what's offered during the cold pressed sintering process.

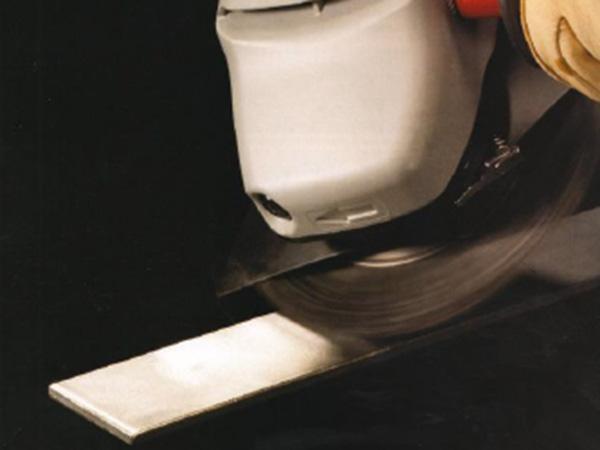

Machine type: suitable for portable hand-held angle grinder
Workingpiece: professional dry blades for blocks, building bricks, concrete, paving stabs, concrete roof tiles, other masonry hard materials, granite, stone, other masonry materials
| SIZE ( Diameter x Arbor) | SIZE (Diameter x Arbor ) | MAX RPM | Quantity of Segment | Sizes of Segment | STD PACK | PART # | |
| 105 x 22.23 mm | 15,000 | 8 | 4.0 x 7.0 x 30 mm | 1 | 24930 | ||
| 115 x 22.23 mm | 13,300 | 8 | 4.0 x 7.0 x 30 mm | 1 | 24943 | ||
| 125 x 22.23 mm | 12,000 | 10 | 4.0 x 7.0 x 37 mm | 1 | 24956 | ||
| 150 x 22.23 mm | 10,100 | 10 | 4.0 x 7.0 x 37 mm | 1 | 24969 | ||
| 180 x 22.23 mm | 8,730 | 12 | 4.0 x 7.0 x 37 mm | 1 | 24972 | ||
Machine type: suitable for portable hand-held angle grinder
Workingpiece: professional dry blades for blocks, building bricks, concrete, paving stabs, concrete roof tiles, other masonry hard materials, granite, stone, other masonry materials
| SIZE ( Diameter x Arbor) | SIZE (Diameter x Arbor ) | MAX RPM | Quantity of Segment | Sizes of Segment | STD PACK | PART # |
| 105 x 22.23 mm | 15,000 | 8 | 4.0 x 7.0 x 30 mm | 1 | 24985 | |
| 115 x 22.23 mm | 13,300 | 8 | 4.0 x 7.0 x 30 mm | 1 | 24998 | |
| 125 x 22.23 mm | 12,000 | 10 | 4.0 x 7.0 x 37 mm | 1 | 25001 | |
| 150 x 22.23 mm | 10,100 | 10 | 4.0 x 7.0 x 37 mm | 1 | 25014 | |
| 180 x 22.23 mm | 8,730 | 12 | 4.0 x 7.0 x 37 mm | 1 | 25027 |
Machine type: suitable for portable hand-held angle grinder
Workingpiece: professional dry blades for blocks, building bricks, concrete, paving stabs, concrete roof tiles, other masonry hard materials, granite, stone, other masonry materials
| SIZE ( Diameter x Arbor) | SIZE (Diameter x Arbor ) | MAX RPM | Quantity of Segment | Sizes of Segment | STD PACK | PART # |
| 105 x 22.23 mm | 15,000 | 8 | 4.0 x 7.0 x 30 mm | 1 | 25030 | |
| 115 x 22.23 mm | 13,300 | 8 | 4.0 x 7.0 x 30 mm | 1 | 25043 | |
| 125 x 22.23 mm | 12,000 | 10 | 4.0 x 7.0 x 37 mm | 1 | 25056 | |
| 150 x 22.23 mm | 10,100 | 10 | 4.0 x 7.0 x 37 mm | 1 | 25069 | |
| 180 x 22.23 mm | 8,730 | 12 | 4.0 x 7.0 x 37 mm | 1 | 25072 |
Machine type: suitable for portable hand-held angle grinder
Workingpiece: professional dry blades for blocks, building bricks, concrete, paving stabs, concrete roof tiles, other masonry hard materials, granite, stone, other masonry materials
| SIZE ( Diameter x Arbor) | SIZE (Diameter x Arbor ) | MAX RPM | Quantity of Segment | Sizes of Segment | STD PACK | PART # |
| 105 x 22.23 mm | 15,000 | 8 | 4.0 x 7.0 x 30 mm | 1 | 25085 | |
| 115 x 22.23 mm | 13,300 | 8 | 4.0 x 7.0 x 30 mm | 1 | 25098 | |
| 125 x 22.23 mm | 12,000 | 10 | 4.0 x 7.0 x 37 mm | 1 | 25101 | |
| 150 x 22.23 mm | 10,100 | 10 | 4.0 x 7.0 x 37 mm | 1 | 25114 | |
| 180 x 22.23 mm | 8,730 | 12 | 4.0 x 7.0 x 37 mm | 1 | 25127 |
