DIY Grade T.C.T Saw Blades

Joysun DIY grade TCT saw blades are suitable for home woodworking applications. Although they are not as strong as the professional grade, they are more economically friendly and have an excellent working lifetime.

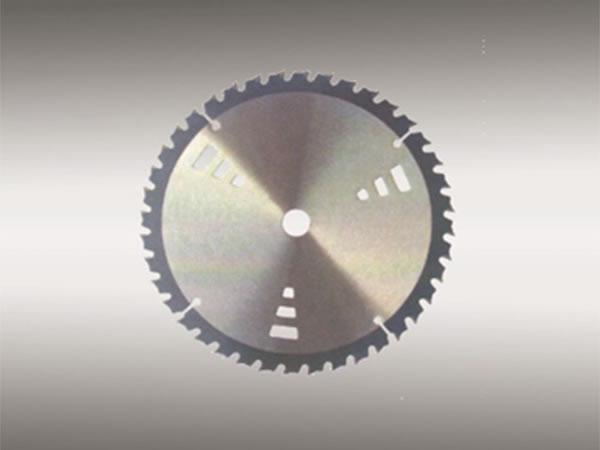

T.C.T. Circular Saw Blades for non-ferrous metal
  • DIY Grade T.C.T Saw Blades
  • DIY Grade T.C.T Saw Blades

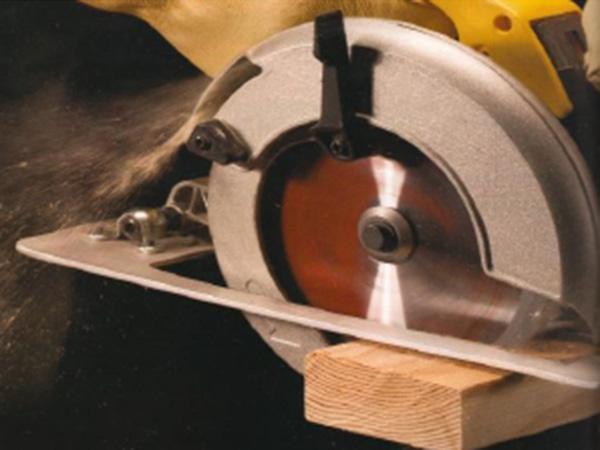

Machine type: suitable for portable hand-held circular saw, cordless trim saw, stationary table saw miter saw, slide miter saw
Workingpiece: it is designed for cutting aluminum blard/stick with thickness less than 1/3 diameter of saw blade and plastic steels.

Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Kerf (Slot Width) Quantity of Segment STD PACK PART #
105 x 20 x 1.2 mm 15,000 1.8 40 10 28872
125 x 20 x 1.2 mm 12,000 1.8 40 10 28885
150 x 20/25 x 1.3 mm 10,100 2 60 10 28898
180 x 20/25 x 1.3 mm 8,750 2.2 60 10 28901
180 x 20/25 x 1.3 mm 8,750 2.2 80 10 28914
200 x 20/25 x 1.5 mm 7,650 2.2 80 10 28927
200 x 20/25 x 1.5 mm 7,650 2.2 100 10 28930
200 x 20/25 x 1.6 mm 6,600 2.3 80 10 28943
200 x 20/25 x 1.6 mm 6,600 2.3 100 10 28956
250 x 20/25 x 2.0 mm 6,100 3 80 10 28969
250 x 20/25 x 2.0 mm 6,100 3 100 10 28972
250 x 20/25 x 2.0 mm 6,100 3 120 10 28985
300 x 25/30 x 2.0 mm 5,100 3 80 10 28998
300 x 25/30 x 2.0 mm 5,100 3 100 10 29001
300 x 25/30 x 2.0 mm 5,100 3 120 10 29014
350 x 25/30 x 2.2 mm 4,400 3.2 100 10 29027
350 x 25/30 x 2.2 mm 4,400 3.2 120 10 29030
400 x 25/30 x 2.5 mm 3,900 3.5 100 10 29043
400 x 25/30 x 2.5 mm 3,900 3.5 120 10 29056
450 x 25/30 x 3.0 mm 3,400 3.5 100 10 29069
450 x 25/30 x 3.0 mm 3,400 3.5 120 10 29072
500 x 25/30 x 3.0 mm 3,100 3.8 100 10 29085
500 x 25/30 x 3.0 mm 3,100 3.8 120 10 29098

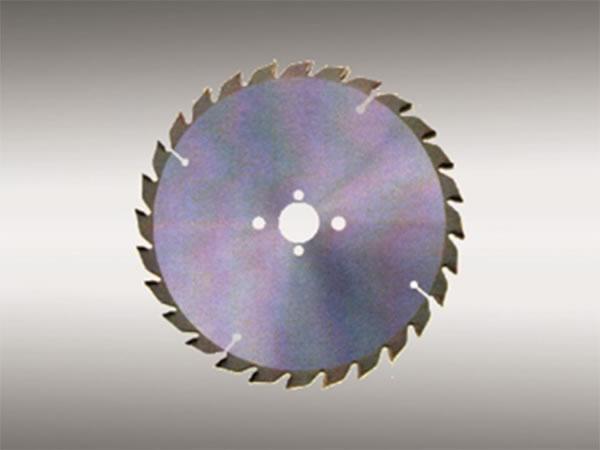

T.C.T. Circular Saw Blades for the wood-working
  • DIY Grade T.C.T Saw Blades
  • DIY Grade T.C.T Saw Blades

Machine type: suitable for portable hand-held circular saw, cordless trim saw, stationary table saw miter saw, slide miter saw
Workingpiece: it is designed for cutting dry hard and soft wood and also can be suitable to cutting shaving board wood, fiber board.

Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Kerf (Slot Width) Quantity of Segment STD PACK PART #
105 x 20 x 1.2 mm 15,000 1.8 24 10 29101
105 x 20 x 1.2 mm 15,000 1.8 30 10 29114
105 x 20 x 1.2 mm 15,000 1.8 40 10 29127
125 x 20 x 1.2 mm 12,000 1.8 24 10 29230
125 x 20 x 1.2 mm 12,000 1.8 30 10 29243
125 x 20 x 1.2 mm 12,000 1.8 40 10 29256
150 x 20/25 x 1.3 mm 10,100 2 24 10 29269
150 x 20/25 x 1.3 mm 10,100 2 40 10 29272
150 x 20/25 x 1.3 mm 10,100 2 60 10 29285
180 x 20/25 x 1.3 mm 8,750 2.2 24 10 29298
180 x 20/25 x 1.3 mm 8,750 2.2 40 10 29301
180 x 20/25 x 1.3 mm 8,750 2.2 60 10 29314
200 x 20/25 x 1.5 mm 7,650 2.2 24 10 29327
200 x 20/25 x 1.5 mm 7,650 2.2 40 10 29330
200 x 20/25 x 1.5 mm 7,650 2.2 60 10 29343
200 x 20/25 x 1.5 mm 7,650 2.2 80 10 29356
200 x 20/25 x 1.5 mm 7,650 2.2 100 10 29369
230 x 20/25 x 1.6 mm 6,600 2.3 40 10 29372
230 x 20/25 x 1.6 mm 6,600 2.3 60 10 29385
230 x 20/25 x 1.6 mm 6,600 2.3 80 10 29398
230 x 20/25 x 1.6 mm 6,600 2.3 100 10 29401
250 x 20/25 x 2.0 mm 6,100 3 40 10 29414
250 x 20/25 x 2.0 mm 6,100 3 60 10 29427
250 x 20/25 x 2.0 mm 6,100 3 80 10 29430
250 x 20/25 x 2.0 mm 6,100 3 100 10 29443
250 x 20/25 x 2.0 mm 6,100 3 120 10 29456
300 x 25/30 x 2.0 mm 5,100 3 40 10 29469
300 x 25/30 x 2.0 mm 5,100 3 60 10 29472
300 x 25/30 x 2.0 mm 5,100 3 80 10 29485
300 x 25/30 x 2.0 mm 5,100 3 100 10 29498
300 x 25/30 x 2.0 mm 5,100 3 120 10 29501
350 x 25/30 x 2.2 mm 4,400 3.2 40 10 29514
350 x 25/30 x 2.2 mm 4,400 3.2 60 10 29527
350 x 25/30 x 2.2 mm 4,400 3.2 80 10 29530
350 x 25/30 x 2.2 mm 4,400 3.2 100 10 29543
350 x 25/30 x 2.2 mm 4,400 3.2 120 10 29556
400 x 25/30 x 2.5 mm 3,900 3.5 40 10 29569
400 x 25/30 x 2.5 mm 3,900 3.5 60 10 29672
400 x 25/30 x 2.5 mm 3,900 3.5 80 10 29685
400 x 25/30 x 2.5 mm 3,900 3.5 100 10 29698
400 x 25/30 x 2.5 mm 3,900 3.5 120 10 29701
450 x 25/30 x 3.0 mm 3,400 3.5 40 10 29714
450 x 25/30 x 3.0 mm 3,400 3.5 60 10 29727
450 x 25/30 x 3.0 mm 3,400 3.5 80 10 29730
450 x 25/30 x 3.0 mm 3,400 3.5 100 10 29743
450 x 25/30 x 3.0 mm 3,400 3.5 120 10 29756
500 x 25/30 x 3.0 mm 3,100 3.8 40 10 29769
500 x 25/30 x 3.0 mm 3,100 3.8 60 10 29772
500 x 25/30 x 3.0 mm 3,100 3.8 80 10 29785
500 x 25/30 x 3.0 mm 3,100 3.8 100 10 29798
500 x 25/30 x 3.0 mm 3,100 3.8 120 10 29801

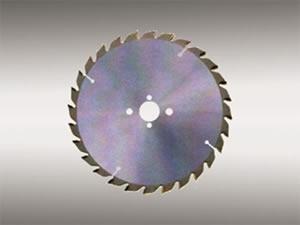

T.C.T. Super Thin Saw Blades for Wood-Working
  • DIY Grade T.C.T Saw Blades
  • DIY Grade T.C.T Saw Blades

Machine type: suitable for portable hand-held circular saw, cordless trim saw, stationary table saw miter saw, slide miter saw
Workingpiece: it is designed for cutting dry hard and soft wood and also can be suitable to cutting shaving board wood, fiber board.

Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Kerf (Slot Width) Quantity of Segment STD PACK PART #
105 x 20 x 0.9-1.1 mm 15,000 1.0-1.4 30 10 29814
105 x 20 x 0.9-1.1 mm 15,000 1.0-1.4 40 10 29827
125 x 20 x 0.9-1.1 mm 12,000 1.0-1.4 30 10 29830
125 x 20 x 0.9-1.1 mm 12,000 1.0-1.4 40 10 29843
150 x 20/25 x 0.9-1.1 mm 10,100 1.0-1.4 40 10 29856
150 x 20/25 x 0.9-1.1 mm 10,100 1.0-1.4 50 10 29869
150 x 20/25 x 0.9-1.1 mm 10,100 1.0-1.4 60 10 29872
180 x 20/25 x 0.9-1.2 mm 8,750 1.0-1.6 40 10 29885
180 x 20/25 x 0.9-1.2 mm 8,750 1.0-1.6 50 10 29898
180 x 20/25 x 0.9-1.2 mm 8,750 1.0-1.6 60 10 29901
200 x 20/25 x 0.9-1.2 mm 7,650 1.2-1.6 40 10 29914
200 x 20/25 x 0.9-1.2 mm 7,650 1.2-1.6 60 10 29927
200 x 20/25 x 0.9-1.2 mm 7,650 1.2-1.6 80 10 29930
230 x 20/25 x 1.0-1.3 mm 6,600 1.4-1.8 40 10 29943
230 x 20/25 x 1.0-1.3 mm 6,600 1.4-1.8 60 10 29956
230 x 20/25 x 1.0-1.3 mm 6,600 1.4-1.8 80 10 29969
230 x 20/25 x 1.0-1.3 mm 6,600 1.4-1.8 100 10 29972
250 x 20/25 x 1.2-1.5 mm 6,100 1.6-2.0 60 10 29985
250 x 20/25 x 1.2-1.5 mm 6,100 1.6-2.0 80 10 29998
250 x 20/25 x 1.2-1.5 mm 6,100 1.6-2.0 100 10 30101
250 x 20/25 x 1.2-1.5 mm 6,100 1.6-2.0 120 10 30114
300 x 20/25 x 1.3-1.7 mm 5,100 1.8-2.2 60 10 30127
300 x 20/25 x 1.3-1.7 mm 5,100 1.8-2.2 80 10 30130
300 x 20/25 x 1.3-1.7 mm 5,100 1.8-2.2 100 10 30143
300 x 20/25 x 1.3-1.7 mm 5,100 1.8-2.2 120 10 30156
350 x 20/25 x 1.3-1.7 mm 4,400 1.8-2.4 60 10 30169
350 x 20/25 x 1.3-1.7 mm 4,400 1.8-2.4 80 10 30172
350 x 20/25 x 1.3-1.7 mm 4,400 1.8-2.4 100 10 30185
350 x 20/25 x 1.3-1.7 mm 4,400 1.8-2.4 120 10 30198
400 x 20/25 x 1.7-2.0 mm 3,900 2.0-2.6 60 10 30201
400 x 20/25 x 1.7-2.0 mm 3,900 2.0-2.6 80 10 30214
400 x 20/25 x 1.7-2.0 mm 3,900 2.0-2.6 100 10 30227
400 x 20/25 x 1.7-2.0 mm 3,900 2.0-2.6 120 10 30230
T.C.T. Circular Saw Blades for cutting ferrous metals
  • DIY Grade T.C.T Saw Blades
  • DIY Grade T.C.T Saw Blades

Machine type: suitable for portable hand-held circular saw, cordless trim saw, stationary table saw miter saw, slide miter saw
Workingpiece: it is designed for cutting ferrous metals which is with thickness less than 5 mm.

Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Kerf (Slot Width) Quantity of Segment STD PACK PART #
105 x 16/20 x 1.7 mm 15,000 2.2 24 10 30243
180 x 16/20 x 1.7 mm 8,750 2.2 36 10 30256
200 x 16/20 x 1.7 mm 7,650 2.2 40 10 30269
230 x 20/25 x 1.7 mm 6,600 2.2 48 10 30272
250 x 20/25 x 1.7 mm 6,100 2.2 50 10 30285
300 x 20/25 x 1.8 mm 5,100 2.2 60 10 30298
350 x 25 x 1.8 mm 4,400 2.2 72 10 30301

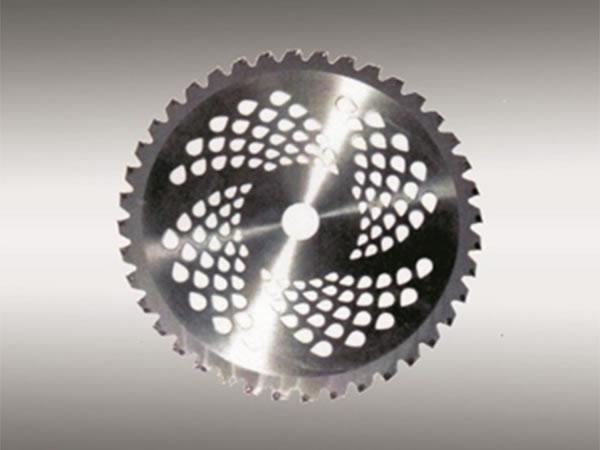

T.C.T. Circular Saw Blades for cutting the grass
  • DIY Grade T.C.T Saw Blades
  • DIY Grade T.C.T Saw Blades

Machine type: suitable for portable hand-held circular saw, cordless trim saw, stationary table saw miter saw, slide miter saw
Workingpiece: it is designed for cutting pruning weed, branch, etc,

Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Kerf (Slot Width) Quantity of Segment STD PACK PART #
230 x 32 x 1.3 mm 6,600 2.23 36 10 30314
230 x 32 x 1.3 mm 6,600 2.23 40 10 30327
250 x 32 x 1.3 mm 6,100 2.2 36 10 30330
250 x 32 x 1.3 mm 6,100 2.2 40 10 30343
