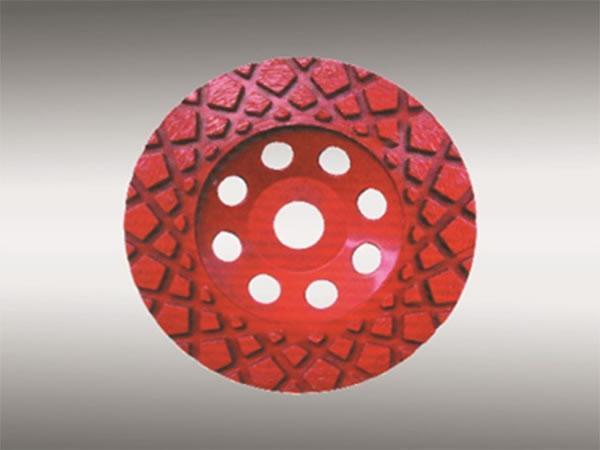

Brazed Welded Cup Grinding Wheels
Joysun brazed welded cup grinding wheels are high performance grinding tools that are nearly limitless when it comes to grinding jobs for various masonry materials such as concrete and stone.

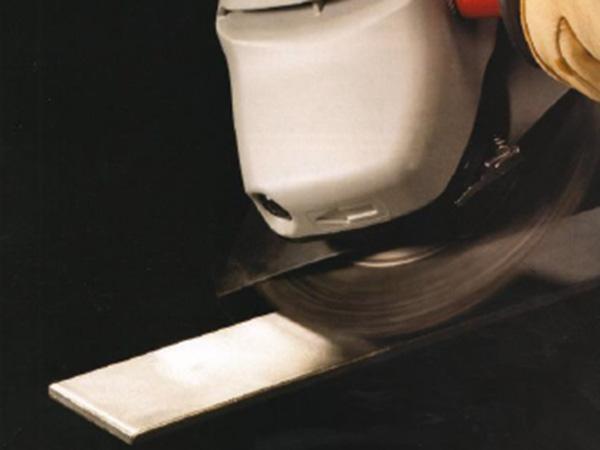

Machine type: suitable for portable hand-held angle grinder
Workingpiece: professional dry blades for blocks, concrete, granite, stone, building bricks, paving stabs, other masonry materials
| SIZE ( Diameter x Arbor) | SIZE (Diameter x Arbor ) | MAX RPM | Height of Segment | Sizes of Segment | STD PACK | PART # |
| 105 x 22.23 mm | 15,000 | 8 / 20 mm | 7 x 5 mm | 1 | 24672 | |
| 115 x 22.23 mm | 13,300 | 8 / 20 mm | 7 x 5 mm | 1 | 24685 | |
| 125 x 22.23 mm | 12,000 | 8 / 20 mm | 7 x 5 mm | 1 | 24698 | |
| 180 x 22.23 mm | 8,730 | 8 / 20 mm | 7 x 5 mm | 1 | 24701 |
Machine type: suitable for portable hand-held angle grinder
Workingpiece: professional dry blades for blocks, concrete, granite, stone, building bricks, paving stabs, other masonry materials
| SIZE ( Diameter x Arbor) | SIZE (Diameter x Arbor ) | MAX RPM | Quantity of Segment | Sizes of Segment | STD PACK | PART # |
| 105 x 22.23 mm | 15,000 | 8 | 5 mm | 1 | 24714 | |
| 115 x 22.23 mm | 13,300 | 10 | 5 mm | 1 | 24727 | |
| 125 x 22.23 mm | 12,000 | 10 | 5 mm | 1 | 24730 | |
| 180 x 22.23 mm | 8,730 | 12 | 5 mm | 1 | 24743 |
Machine type: suitable for portable hand-held angle grinder
Workingpiece: professional dry blades for blocks, concrete, granite, stone, building bricks, paving stabs, other masonry materials
| SIZE ( Diameter x Arbor) | SIZE (Diameter x Arbor ) | MAX RPM | Quantity of Segment | Sizes of Segment | STD PACK | PART # |
| 105 x 22.23 mm | 15,000 | 20 | 5 mm | 1 | 24756 | |
| 115 x 22.23 mm | 13,300 | 20 | 5 mm | 1 | 24769 | |
| 125 x 22.23 mm | 12,000 | 22 | 5 mm | 1 | 24772 | |
| 180 x 22.23 mm | 8,730 | 22 | 5 mm | 1 | 24785 |
Machine type: suitable for portable hand-held angle grinder
Workingpiece: professional dry blades for blocks, concrete, granite, stone, building bricks, paving stabs, other masonry materials
| SIZE ( Diameter x Arbor) | SIZE (Diameter x Arbor ) | MAX RPM | Height of Segment | Sizes of Segment | STD PACK | PART # |
| 105 x 22.23 mm | 15,000 | 15 | 5 mm | 1 | 24798 | |
| 115 x 22.23 mm | 13,300 | 15 | 5 mm | 1 | 24901 | |
| 125 x 22.23 mm | 12,000 | 15 | 5 mm | 1 | 24914 | |
| 180 x 22.23 mm | 8,730 | 15 | 5 mm | 1 | 24927 |
