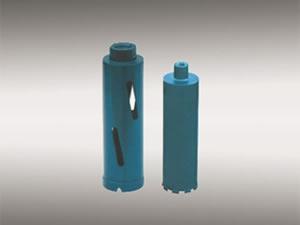

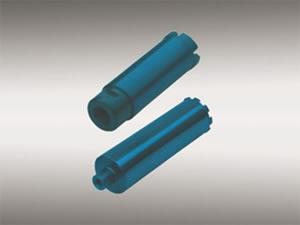

Diamond Core Drill Bits- Dry Type
Joysun diamond core drill bits are an excellent choice for dry construction drilling applications. The high strength drill bits will power through tough materials with ease and they combine this feature with incredible durability. We have various lengths and segment heights available at your request.
Machine type: suitable for portable hand-held core drill rigs, stationary core drill rigs
Workingpiece: professional dry blades for blocks, bricks, paving stabs, asphalt, green & reinforced concrete, stone
| SIZE ( Diameter x Length) | SIZE (Diameter x Length) | MAX RPM | Heigth of Segment | STD PACK | PART # |
| 5.00 x 150.0 mm | 6,000 | 8/10mm | 1 | 25130 | |
| 7.500 x 150.0 mm | 6,000 | 8/10mm | 1 | 25143 | |
| 10.00 x 150.0 mm | 6,000 | 8/10mm | 1 | 25156 | |
| 12.00 x 150.0 mm | 5,000 | 8/10mm | 1 | 25169 | |
| 15.00 x 150.0 mm | 5,000 | 8/10mm | 1 | 25172 | |
| 20.00 x 150.0 mm | 4,000 | 8/10mm | 1 | 25185 | |
| 25.00 x 150.0 mm | 4,000 | 8/10mm | 1 | 25198 | |
| 28.00 x 150.0 mm | 3,000 | 8/10mm | 1 | 25201 | |
| 32.00 x 150.0 mm | 3,000 | 8/10mm | 1 | 25214 | |
| 35.00 x 150.0 mm | 2,000 | 8/10mm | 1 | 25227 | |
| 38.00 x 150.0 mm | 2,000 | 8/10mm | 1 | 25330 | |
| 45.00 x 150.0 mm | 2,000 | 8/10mm | 1 | 25343 |
Machine type: suitable for portable hand-held core drill rigs, stationary core drill rigs
Workingpiece: professional dry blades for blocks, bricks, paving stabs, asphalt, green & reinforced concrete, stone
| SIZE ( Diameter x Length) | SIZE (Diameter x Length) | MAX RPM | Height of Segment | STD PACK | PART # |
| 25.00 x 150.0 mm | 4,000 | 8/10mm | 1 | 25356 | |
| 28.00 x 150.0 mm | 3,000 | 8/10mm | 1 | 25369 | |
| 32.00 x 150.0 mm | 3,000 | 8/10mm | 1 | 25372 | |
| 35.00 x 150.0 mm | 2,000 | 8/10mm | 1 | 25385 | |
| 38.00 x 150.0 mm | 2,000 | 8/10mm | 1 | 25398 | |
| 45.00 x 150.0 mm | 2,000 | 8/10mm | 1 | 25401 |
Machine type: suitable for portable hand-held core drill rigs, stationary core drill rigs
Workingpiece: professional dry blades for blocks, bricks, paving stabs, asphalt, green & reinforced concrete, stone
| SIZE ( Diameter x Length) | SIZE (Diameter x Length) | MAX RPM | Height of Segment | STD PACK | PART # |
| 25.00 x 150.0 mm | 4,000 | 8/10mm | 1 | 25414 | |
| 28.00 x 150.0 mm | 3,000 | 8/10mm | 1 | 25427 | |
| 32.00 x 150.0 mm | 3,000 | 8/10mm | 1 | 25430 | |
| 35.00 x 150.0 mm | 2,000 | 8/10mm | 1 | 25443 | |
| 38.00 x 150.0 mm | 2,000 | 8/10mm | 1 | 25456 | |
| 45.00 x 150.0 mm | 2,000 | 8/10mm | 1 | 25469 |
