Laser Welded Tuck Point Saw Blades

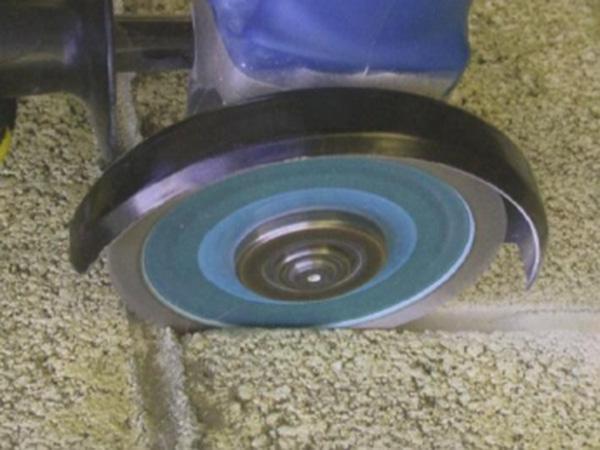

Joysun laser welded tuck point saw blades are carefully engineered cutting tools that are made for tough applications such as masonry cutting. This high precision blade can perform very clean and smooth cuts through materials such as brick and stone with ease and durability that is unmatched.

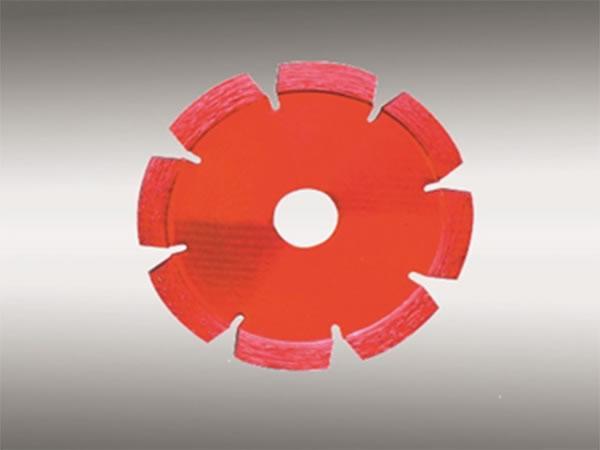

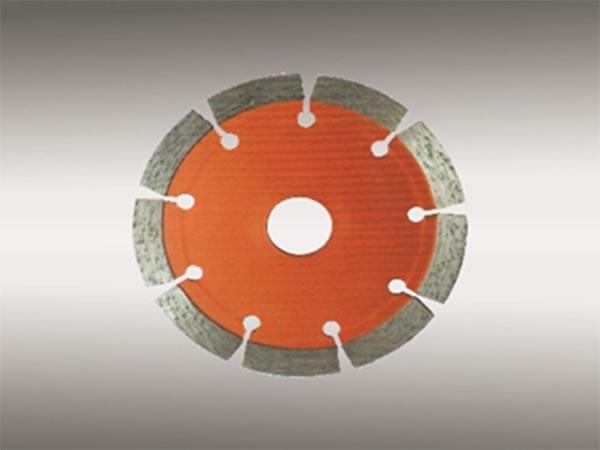

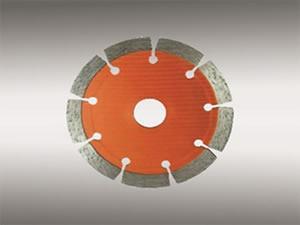

General Laser Welded Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades

Machine type: suitable for portable hand-held circular saw, angle grinder
Workingpiece: professional dry blades for blocks, medium-hard building bricks, paving stabs, concrete roof tiles, mortar, med hard materials.

Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-16.0 mm 15,000 8 / 10 mm 0.250" 10 24172
105 x 22.23-16.0 mm 15,000 8 / 10 mm 0.375" 10 24185
115 x 22.23-16.0 mm 13,300 8 / 10 mm 0.250" 10 24198
115 x 22.23-16.0 mm 13,300 8 / 10 mm 0.375" 10 24201
125 x 22.23-16.0 mm 12,000 8 / 10 mm 0.250" 10 24214
125 x 22.23-16.0 mm 12,000 8 / 10 mm 0.375" 10 24227
180 x 22.23-16.0 mm 8,730 10 mm 0.250" 10 24230
180 x 22.23-16.0 mm 8,730 10 mm 0.375" 10 24243
230 x 22.23-16.0 mm 6,600 10 mm 0.250" 10 24256
230 x 22.23-16.0 mm 6,600 10 mm 0.375" 10 24269
250 x 25.40 mm 6,100 10 mm 0.375" 10 24272
300 x 25.40 mm 5,100 10 mm 0.375" 10 24285

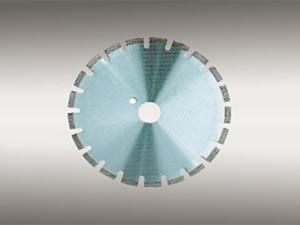

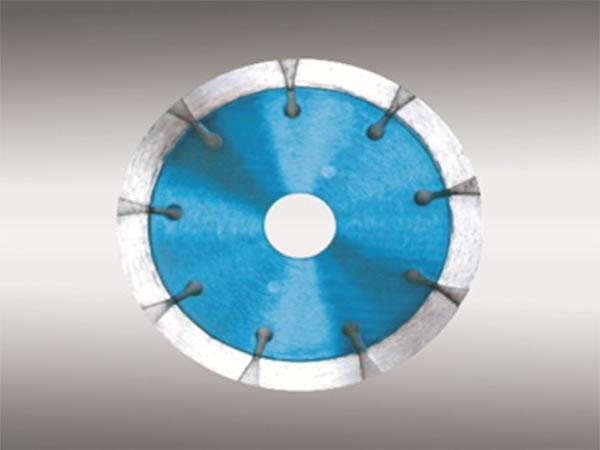

Laser Tuck Point Saw Blades with Bored Core
  • Laser Welded Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades

Machine type: suitable for portable hand-held circular saw, angle grinder
Workingpiece: professional dry blades for blocks, medium-hard building bricks, paving stabs, concrete roof tiles, mortar, med hard materials.

Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-16.0 mm 15,000 10 mm 0.250" 10 24298
105 x 22.23-16.0 mm 15,000 10 mm 0.375" 10 24301
115 x 22.23-16.0 mm 13,300 10 mm 0.250" 10 24314
115 x 22.23-16.0 mm 13,300 10 mm 0.375" 10 24327
125 x 22.23-16.0 mm 12,000 10 mm 0.250" 10 24330
125 x 22.23-16.0 mm 12,000 10 mm 0.375" 10 24343
180 x 22.23-16.0 mm 8,730 10 mm 0.250" 10 24356
180 x 22.23-16.0 mm 8,730 10 mm 0.375" 10 24369
230 x 22.23-16.0 mm 6,600 10 mm 0.250" 10 24472
230 x 22.23-16.0 mm 6,600 10 mm 0.375" 10 24485

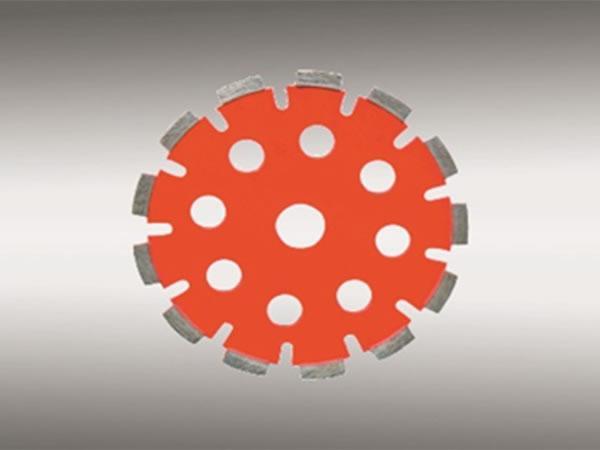

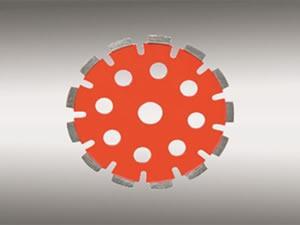

Laser Tuck Point Saw Blades with Crack Chaser
  • Laser Welded Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades

Machine type: suitable for portable hand-held circular saw, angle grinder
Workingpiece: professional dry blades for blocks, medium-hard building bricks, paving stabs, concrete roof tiles, mortar, med hard materials.

Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-16.0 mm 15,000 10 mm 0.250" 10 24498
105 x 22.23-16.0 mm 15,000 10 mm 0.375" 10 24501
115 x 22.23-16.0 mm 13,300 10 mm 0.250" 10 24514
115 x 22.23-16.0 mm 13,300 10 mm 0.375" 10 24527
125 x 22.23-16.0 mm 12,000 10 mm 0.250" 10 24530
125 x 22.23-16.0 mm 12,000 10 mm 0.375" 10 24543
180 x 22.23-16.0 mm 8,730 10 mm 0.250" 10 24556
180 x 22.23-16.0 mm 8,730 10 mm 0.375" 10 24569
230 x 22.23-16.0 mm 6,600 10 mm 0.250" 10 24572
230 x 22.23-16.0 mm 6,600 10 mm 0.375" 10 24585

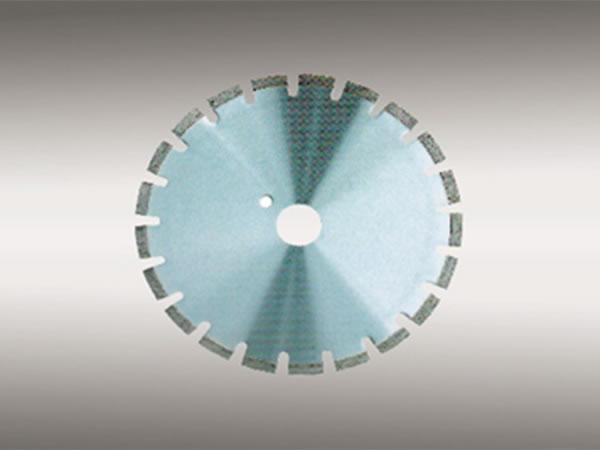

Laser Tuck Point Saw Blades in Large Diameters
  • Laser Welded Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades

Machine type: suitable for hand-held circular saw, angle grinder, stationary saw
Workingpiece: professional dry blades for ceramic and stone tiles, granite, marble, very hard bricks and other very hard/dense materials, blocks, paving stabs, concrete roof tiles, mortar

Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
230 x 22.23-16.0 mm 6,600 10 mm 0.375" 10 24598
250 x 22.23-16.0 mm 6,100 10 mm 0.375" 10 24601
300 x 22.23-16.0 mm 5,100 10 mm 0.375" 10 24614
350 x 22.23-16.0 mm 4,400 10 mm 0.375" 10 24627
Hot Pressed Assembled Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades
  • Laser Welded Tuck Point Saw Blades

Machine type: suitable for hand-held circular saw, angle grinder, stationary saw
Workingpiece: professional dry blades for ceramic and stone tiles, granite, marble, very hard bricks and other very hard/dense materials, blocks, paving stabs, concrete roof tiles, mortar

Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-16.0 mm 15,000 10 mm 1.0 mm 10 24630
115 x 22.23-16.0 mm 13,300 10 mm 1.0 mm 10 24643
125 x 22.23-16.0 mm 12,000 10 mm 1.2 mm 10 24656
180 x 22.23-16.0 mm 8,730 10 mm 1.2 mm 10 24669
Laser Welded Tuck Point Saw Blades
