Hot Pressed Sintered Saw Blades

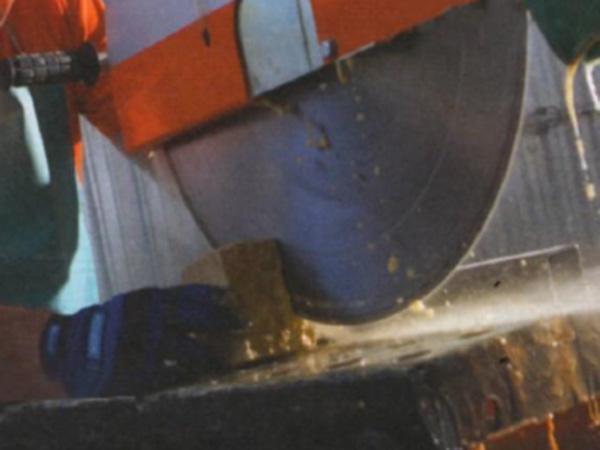

Joysun hot pressed sintered saw blades are high performance cutting tools which have been specially designed for durability and strength when it comes to cutting masonry materials. This includes, bricks, concrete, ceramic tiles, granite and many more.

Hot Pressed Protected Fine Turbo Blades
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-20.0 mm 15,000 7 / 10 mm 1.8 mm 10 22556
115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.0 mm 10 22569
125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.0 mm 10 22572
150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.1 mm 10 22585
180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.2 mm 10 22598
200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.4 mm 10 22601
230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.4 mm 10 22614
250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 2262
T-Shape Segmented Turbo Saw Blades
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-20.0 mm 15,000 7 / 10 mm 1.8 mm 10 22730
115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.0 mm 10 22743
125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.0 mm 10 22756
150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.1 mm 10 22769
180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.2 mm 10 22772
200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.4 mm 10 22785
230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.4 mm 10 22798
250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 22801
Knife Shape Segment Turbo Saw Blades
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-20.0 mm 15,000 7 / 10 mm 1.8 mm 10 22814
115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.0 mm 10 22827
125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.0 mm 10 22830
150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.1 mm 10 22843
180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.2 mm 10 22856
200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.4 mm 10 22869
230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.4 mm 10 22872
250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 22885

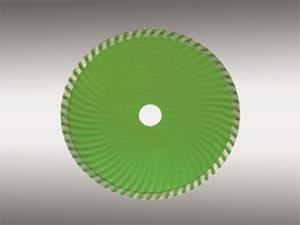

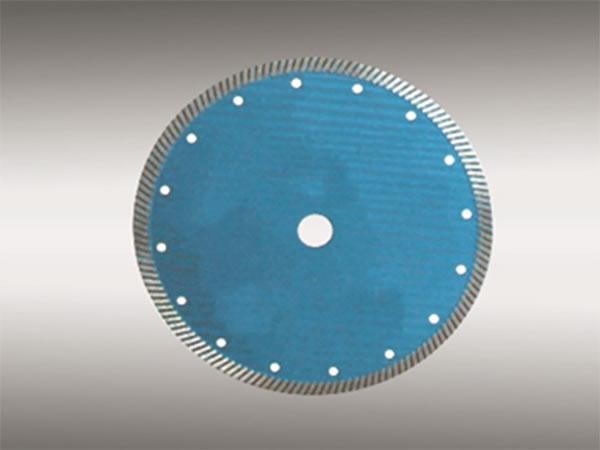

Super Thin Fine Segments Turbo Blades
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-20.0 mm 15,000 10 mm 2.1 mm 10 22898
115 x 22.23-20.0 mm 13,300 10 mm 2.2 mm 10 22901
125 x 22.23-20.0 mm 12,000 10 mm 2.4 mm 10 22914
150 x 22.23-20.0 mm 10,185 10 mm 2.6 mm 10 22927
180 x DM 22.23-20.0 mm 8,730 10 mm 2.6 mm 10 22930
200 x DM 22.23-20.0 mm 7,640 10 mm 2.6 mm 10 22943
230 x DM 22.23-20.0 mm 6,600 10 mm 2.8 mm 10 22956
250 x 25.40-20.0 mm 6,100 10 mm 3.0 mm 10 22969
300 x 25.40-20.0 mm 5,100 10 mm 3.6 mm 10 22972
350 x 25.40-20.0 mm 4,400 10 mm 3.6 mm 10 22985
Turbo Saw Blades with Circular Protected Segments
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-20.0 mm 15,000 7/10 mm 2.1 mm 10 22998
115 x 22.23-20.0 mm 13,300 7/10 mm 2.2 mm 10 23001
125 x 22.23-20.0 mm 12,000 7/10 mm 2.4 mm 10 23014
150 x 22.23-20.0 mm 10,185 7/10 mm 2.6 mm 10 23027
180 x DM 22.23-20.0 mm 8,730 7/10 mm 2.6 mm 10 23030
200 x DM 22.23-20.0 mm 7,640 7/10 mm 2.6 mm 10 23043
230 x DM 22.23-20.0 mm 6,600 7/10 mm 2.8 mm 10 23056
250 x 25.40-20.0 mm 6,100 7/10 mm 3.0 mm 10 23069
300 x 25.40-20.0 mm 5,100 8/10 mm 3.6 mm 10 23172
350 x 25.40-20.0 mm 4,400 8/10 mm 3.6 mm 10 23185
Turbo Saw Blade with Fan-Type Segment
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-20.0 mm 15,000 8/10 mm 2.1 mm 10 23198
115 x 22.23-20.0 mm 13,300 8/10 mm 2.2 mm 10 23201
125 x 22.23-20.0 mm 12,000 8/10 mm 2.4 mm 10 23214
150 x 22.23-20.0 mm 10,185 8/10 mm 2.6 mm 10 23227
180 x DM 22.23-20.0 mm 8,730 8/10 mm 2.6 mm 10 23230
200 x DM 22.23-20.0 mm 7,640 8/10 mm 2.6 mm 10 23230
230 x DM 22.23-20.0 mm 6,600 8/10 mm 2.8 mm 10 23256
250 x 25.40-20.0 mm 6,100 8/10 mm 3.0 mm 10 23269
300 x 25.40-20.0 mm 5,100 8/10 mm 3.6 mm 10 23272
350 x 25.40-20.0 mm 4,400 8/10 mm 3.6 mm 10 23285
Turbo Saw Blades with Broad Segment
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-20.0 mm 15,000 7/12 mm 2.1 mm 10 23298
115 x 22.23-20.0 mm 13,300 7/12 mm 2.2 mm 10 23301
125 x 22.23-20.0 mm 12,000 7/12 mm 2.4 mm 10 23314
150 x 22.23-20.0 mm 10,185 7/12 mm 2.6 mm 10 23327
180 x DM 22.23-20.0 mm 8,730 7/12 mm 2.6 mm 10 23330
200 x DM 22.23-20.0 mm 7,640 7/12 mm 2.6 mm 10 23343
230 x DM 22.23-20.0 mm 6,600 7/12 mm 2.8 mm 10 23356
250 x 25.40-20.0 mm 6,100 7/12 mm 3.0 mm 10 23369
300 x 25.40-20.0 mm 5,100 8/12 mm 3.6 mm 10 23372
350 x 25.40-20.0 mm 4,400 8/12 mm 3.6 mm 10 23385
Turbo Saw Blade with Standard Segments
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-20.0 mm 15,000 8.0 mm 2.0 mm 10 23398
115 x 22.23-20.0 mm 13,300 8.0 mm 2.2 mm 10 23401
125 x 22.23-20.0 mm 12,000 8.0 mm 2.2 mm 10 23414
150 x 22.23-20.0 mm 10,185 8.0 mm 2.3 mm 10 23427
180 x DM 22.23-20.0 mm 8,730 8.0 mm 2.4 mm 10 23430
230 x DM 22.23-20.0 mm 6,600 8.0 mm 2.6 mm 10 23443

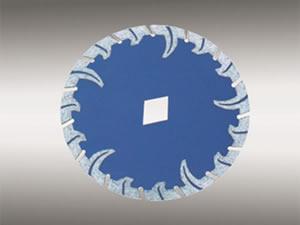

Turbo Blade with Slanting Protected Segments
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-20.0 mm 15,000 7 / 10 mm 1.8 mm 10 23456
115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.0 mm 10 23469
125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.0 mm 10 23472
150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.1 mm 10 23485
180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.2 mm 10 23498
200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.4 mm 10 23601
230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.4 mm 10 23614
250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 23627

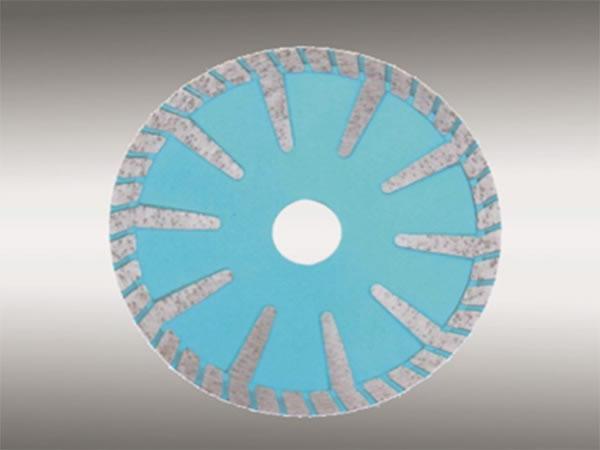

Turbo Saw Blades with Curved Segments
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-20.0 mm 15,000 7 / 10 mm 1.8 mm 10 23630
115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.0 mm 10 23643
125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.0 mm 10 23656
150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.1 mm 10 23669
180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.2 mm 10 23672
200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.4 mm 10 23685
230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.4 mm 10 23698
250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 23701
Turbo Blades with Crown Shape Segments
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-20.0 mm 15,000 7 / 10 mm 1.8 mm 10 23714
115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.0 mm 10 23727
125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.0 mm 10 23730
150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.1 mm 10 23743
180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.2 mm 10 23756
200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.4 mm 10 23769
230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.4 mm 10 23772
250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 23785
Turbo Saw Blades with Reinforced Segments
  • Hot Pressed Sintered Saw Blades
  • Hot Pressed Sintered Saw Blades
Availability
SIZE ( Diameter x Arbor) SIZE (Diameter x Arbor ) MAX RPM Heigth of Segment Width of Segment STD PACK PART #
105 x 22.23-20.0 mm 15,000 7 / 10 mm 2.1 mm 10 23798
115 x 22.23-20.0 mm 13,300 7 / 10 mm 2.2 mm 10 23801
125 x 22.23-20.0 mm 12,000 7 / 10 mm 2.4 mm 10 23814
150 x 22.23-20.0 mm 10,185 7 / 10 mm 2.6 mm 10 23827
180 x DM 22.23-20.0 mm 8,730 7 / 10 mm 2.6 mm 10 23830
200 x DM 22.23-20.0 mm 7,640 7 / 10 mm 2.6 mm 10 23843
230 x DM 22.23-20.0 mm 6,600 7 / 10 mm 2.8 mm 10 23856
250 x 25.40-20.0 mm 6,100 7 / 10 mm 3.0 mm 10 23869
300 x 25.40-20.0 mm 5,100 8 / 10 mm 3.6 mm 10 23872
350 x 25.40-20.0 mm 4,400 8 / 10 mm 3.6 mm 10 23885
