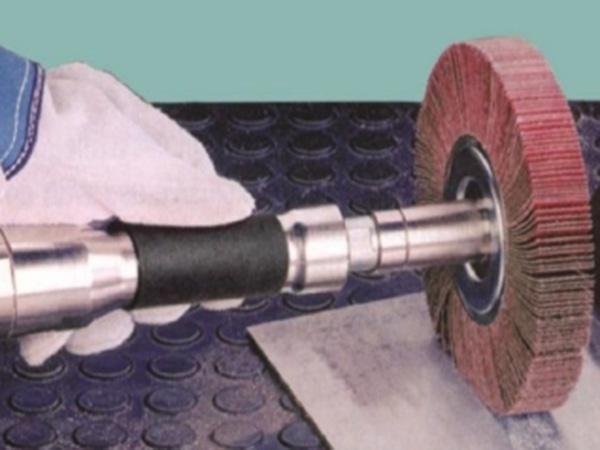

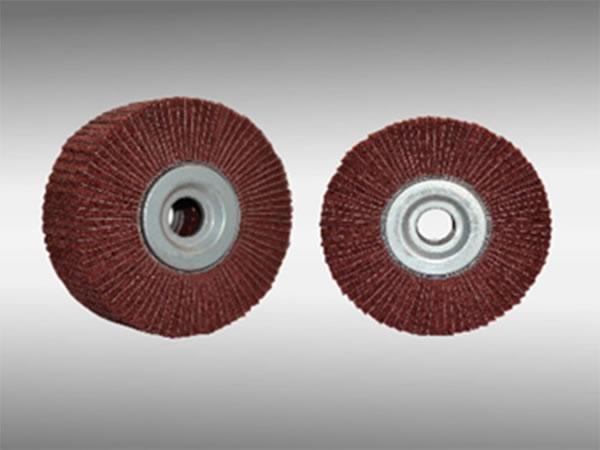

Joysun Alumina Flanged surface conditioning flap wheels are constructed from a synthetic fiber mesh that is bonded with an aluminum oxide grain along with INOX rated sulfur and chlorinated free filling agents. These conditioning wheels are softer and more flexible than many of our more abrasive grinding wheels and discs. The smaller grain provides a good finishing effect without damaging the surface of some more sensitive materials such as plastics, rubber and wood.
| Product Code | JAC-K727RF | JAC-K728SF | JAC-K729GF |
| Abrasive Grains | Refined Alumina Oxide | Refined Alumina Oxide | Refined Alumina Oxide |
| Backing Cloth Type | X-Flex cotton/Non-woven | X-Flex cotton/Non-woven | X-Flex cotton/Non-woven |
| Flap Mounted Version | Interleaved | Interleaved | Interleaved |
| Fasten Type Of Steel Flange | U Type Slot | U Type Slot | U Type Slot |
| BRITSH SIZE | METRIC SIZE | OPT | MAX | STD | Grit | PART # | PART # | PART # |
| ( D x W x H ) | ( D x W x H ) | RPM | RPM | PACK | ||||
| 6" x 1" x 2" | 150 x 25 x 50 mm | 3,000 | 6,100 | 10 | Coarse | 76606 | 76607 | 76608 |
| Medium | 76619 | 76610 | 76611 | |||||
| Fine | 76622 | 76623 | 76624 | |||||
| V.Fine | 76635 | 76636 | 76637 | |||||
| 6-1/2" x 2" x 2-1/8" | 165 x 50 x 54 mm | 2,700 | 5,300 | 10 | Coarse | 76648 | 76649 | 76640 |
| Medium | 76651 | 76652 | 76653 | |||||
| Fine | 76664 | 76665 | 76666 | |||||
| V.Fine | 76677 | 76678 | 76679 | |||||
| 8" x 1" x 3" | 200 x 25 x 75 mm | 2,400 | 4,500 | 10 | Coarse | 76680 | 76681 | 76682 |
| Medium | 76693 | 76694 | 76695 | |||||
| Fine | 76706 | 76707 | 76708 | |||||
| V.Fine | 76719 | 76710 | 76711 | |||||
| 8" x 2" x 3" | 200 x 50 x 25 mm | 2,400 | 4,500 | 10 | Coarse | 76722 | 76723 | 76724 |
| Medium | 76735 | 76736 | 76737 | |||||
| 2,400 | 4,500 | 10 | Fine | 76748 | 76749 | 76740 | ||
| V.Fine | 76751 | 76752 | 76753 | |||||
| 12" x 2" x 5" | 250 x 50 x 125 mm | 1,900 | 4,000 | 10 | Coarse | 76764 | 76765 | 76766 |
| Medium | 76777 | 76778 | 76779 | |||||
| Fine | 76780 | 76781 | 76782 | |||||
| V.Fine | 76793 | 76794 | 76795 |
