Segmental Sanding Belts

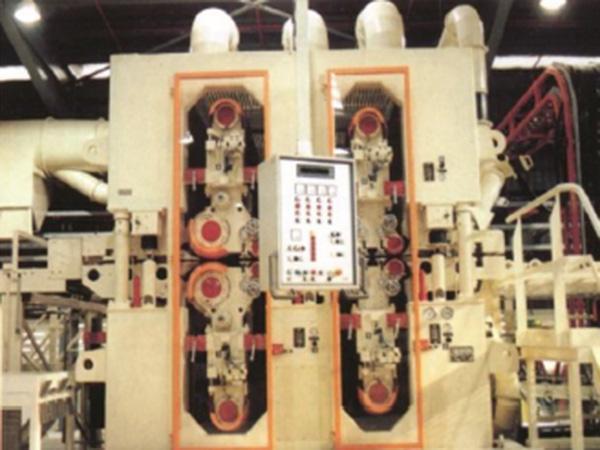

Joysun segmental sanding belt is designed primarily for processing panels such as particle board and plywood among others. The sanding belts are highly effective and provide different segments for completing various stages of the grinding and sanding processes.
JAC-C866KX Segmental Sanding Belts
| Product Code | JAC-C866KX | JAC-C867RX | JAC-C868SX |
| Abrasive Grains | Silicon Carbide | Silicon Carbide | Silicon Carbide |
| Backing Cloth Type | Y-weigth Ply-cotton | Y-weigth Ply-cotton | Y-weigth Ply-cotton |
| Abrasive Belt Joint Type | Butt joint with splicing tape | Butt joint with splicing tape | Butt joint with splicing tape |
| SIZE | SIZE | GRIT | STD | PART # | PART # | PART # |
| ( Width x Length ) | ( Width x Length) | PACK | ||||
| 65" x 110" | 1650 x 12800 mm | 36 | 10 | 86006 | 86007 | 86008 |
| 40 | 10 | 86019 | 86010 | 86011 | ||
| 50 | 10 | 86022 | 86023 | 86024 | ||
| 60 | 10 | 86035 | 86036 | 86037 | ||
| 80 | 10 | 86048 | 86049 | 86040 | ||
| 100 | 10 | 86051 | 86052 | 86053 | ||
| 120 | 10 | 86064 | 86065 | 86066 | ||
| 150 | 10 | 86077 | 86078 | 86079 | ||
| 180 | 10 | 86080 | 86081 | 86082 | ||
| 65" x 122" | 1650 x 3100 mm | 36 | 10 | 86093 | 86094 | 86095 |
| 40 | 10 | 86106 | 86107 | 86108 | ||
| 50 | 10 | 86119 | 86110 | 86111 | ||
| 60 | 10 | 86122 | 86123 | 86124 | ||
| 80 | 10 | 86135 | 86136 | 86137 | ||
| 100 | 10 | 86148 | 86149 | 86140 | ||
| 120 | 10 | 86151 | 86152 | 86153 | ||
| 150 | 10 | 86164 | 86165 | 86166 | ||
| 180 | 10 | 86177 | 86178 | 86179 | ||
| 77" x 126" | 1950 x 3200 mm | 36 | 10 | 86180 | 86181 | 86182 |
| 40 | 10 | 86193 | 86194 | 86195 | ||
| 50 | 10 | 86206 | 86207 | 86208 | ||
| 60 | 10 | 86219 | 86210 | 86211 | ||
| 80 | 10 | 86222 | 86223 | 86224 | ||
| 100 | 10 | 86235 | 86236 | 86237 | ||
| 120 | 10 | 86248 | 86249 | 86240 | ||
| 150 | 10 | 86251 | 86252 | 86253 | ||
| 180 | 10 | 86264 | 86265 | 86266 | ||
| 220 | 10 | 86277 | 86278 | 86279 | ||
| 240 | 10 | 86280 | 86281 | 86282 | ||
| 320 | 10 | 86293 | 86294 | 86295 | ||
| 105" x 126" | 2650 x 3200 mm | 36 | 10 | 86306 | 86307 | 86308 |
| 40 | 10 | 86319 | 86410 | 86411 | ||
| 50 | 10 | 86422 | 86423 | 86424 | ||
| 60 | 10 | 86435 | 86436 | 86437 | ||
| 80 | 10 | 86448 | 86449 | 86440 | ||
| 100 | 10 | 86451 | 86452 | 86453 | ||
| 120 | 10 | 86464 | 86465 | 86466 | ||
| 150 | 10 | 86477 | 86478 | 86479 | ||
| 180 | 10 | 86480 | 86481 | 86482 | ||
| 220 | 10 | 86493 | 86494 | 86495 | ||
| 240 | 10 | 86506 | 86507 | 86508 | ||
| 320 | 10 | 86519 | 86510 | 86511 |
