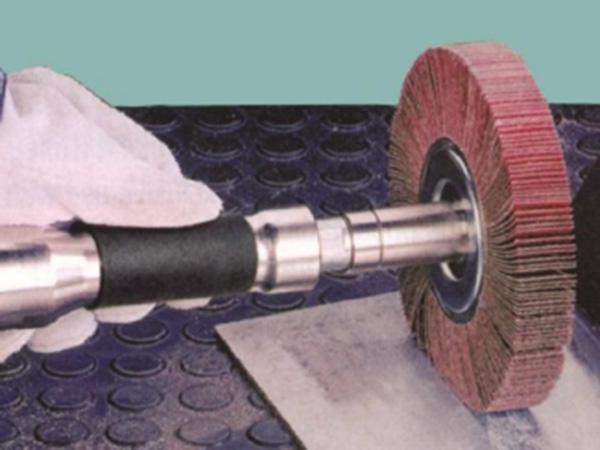

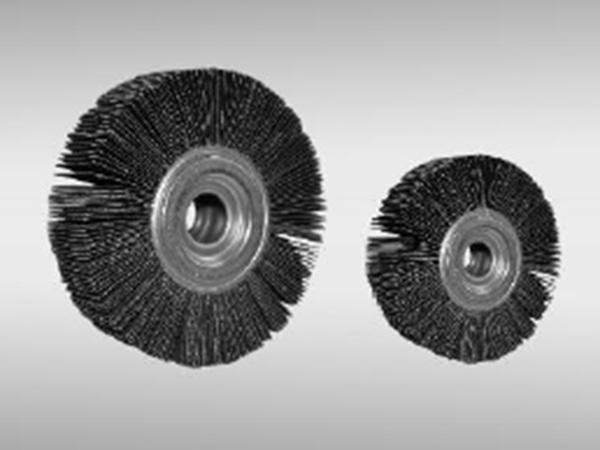

Joysun silicon carbide flanged flap wheels have been designed and are constructed with the flexible X weight and J weight blended backing cloth with a professional grade, self-sharpening silicon carbide abrasive flaps.
These flanged flap wheels are particularly suitable for high efficiency grinding on cast iron, stainless steel, aluminum, wood, stone and concrete. They are outstanding for stock removal, surface grinding and they feature outstanding durability.
| Product Code | JAC-C818GF | JAC-C828RF | JAC-C838KF |
| Abrasive Grains | Silicon Carbide | Silicon Carbide | Silicon Carbide |
| Backing Cloth Type | X-Flex cotton | X-Flex cotton | X-Flex cotton |
| Flap Fitting Hardness | Hard/Medium/Soft | Hard/Medium/Soft | Hard/Medium/Soft |
| Fasten Type Of Steel Flange | U Type Slot | U Type Slot | U Type Slot |
| BRITSH SIZE | METRIC SIZE | OPT | MAX | STD | GRIT | PART # | PART # | PART # |
| ( D x W x H ) | ( D x W x H ) | RPM | RPM | PACK | ||||
| 3-1/2" x 1" x 5/8" | 90 x 25 x 16 mm | 5,200 | 12,000 | 10 | 40 | 60006 | 60007 | 60008 |
| 50 | 60019 | 60010 | 60011 | |||||
| 60 | 60022 | 60023 | 60024 | |||||
| 80 | 60035 | 60036 | 60037 | |||||
| 100 | 60048 | 60049 | 60040 | |||||
| 120 | 60051 | 60052 | 60053 | |||||
| 3-1/2" x 1-1/4" x 5/8" | 90 x 30 x 16 mm | 5,200 | 12,000 | 10 | 40 | 60064 | 60065 | 60066 |
| 50 | 60077 | 60078 | 60079 | |||||
| 60 | 60080 | 60081 | 60082 | |||||
| 80 | 60093 | 60094 | 60095 | |||||
| 100 | 60106 | 60107 | 60108 | |||||
| 120 | 60119 | 60110 | 60111 |
